PIXER P20
Description
The PIXER® P20 single-use pump is designed for robust performance in mid-scale bioprocessing applications. Powered by Alphinity’s Polymorphic Pump Technology® (PPT®), the P20 delivers low-shear, low-pulsation fluid transfer, ensuring the integrity of high-value biologics. Its free-draining vertical orientation optimizes product recovery, making it a top choice for point-of-use buffer dilution, mixing surge or pooling vessels, and benchtop TFF processes. The P20’s multiple inlet and outlet options provide unparalleled configurability for complex bioprocessing systems. With flow rates suitable for pilot-scale production, the P20 bridges the gap between research and manufacturing.
Technical Specifications
- Flow Rate (Nom): 29L/min @1,750RPM
- Flow Rate (Max): 40L/min @2,400RPM
- Tubing ID (in): 3/4 to 1

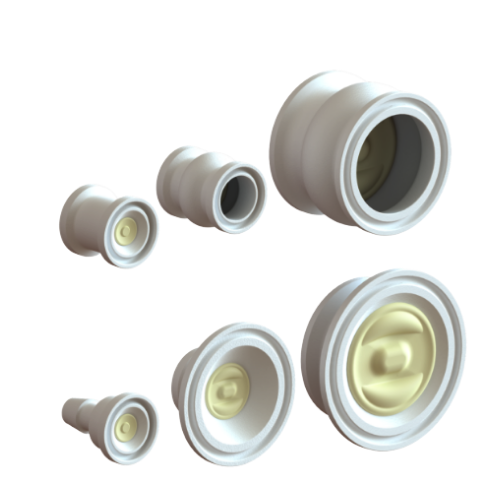

- Injection Ports: Up to 10 (Custom configurations available)
- Outlet Ports: Up to 5 (Custom configurations available)
- Operating Pressure: Up to 4 bar(60 psi)
- Orientation: Free-draining vertical design
