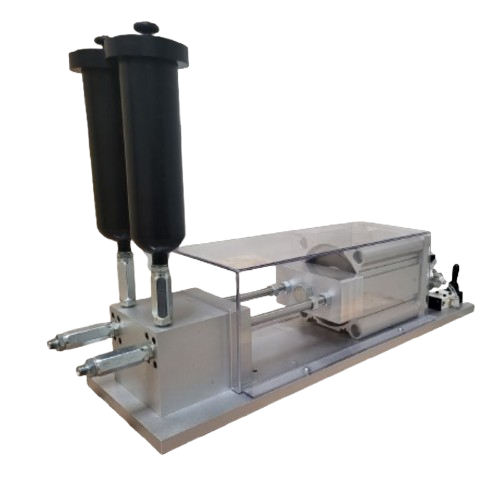

Benchtop LSR Metering & Mixing System

Full Specification

Benchtop LSR Metering & Mixing System Specifications

Complete mechanical data for the MB-50-X. Part of our LSR overmolding machine platform.

Specification	Detail
Operation	Pneumatic, fixed 1:1 ratio, 2-component
Viscosity range	50,000 – 2,000,000 cps
Output	Up to 50 cc/stroke
Output pressure	0 – 3,000 psi
Feed system	20 oz Semco cartridge
Weight	~50 lbs
Footprint	12 in. x 30 in.
Grades available	Industrial, Medical
Documentation	Full specifications available on request

How It Works

How Benchtop Metering & Mixing Works

The MB-50-X meters two silicone components from a 20 oz Semco cartridge at a fixed 1:1 ratio, then mixes and dispenses them through a static mixer by the stroke rather than continuous flow — well matched to the shorter runs typical of formulation work. As a compact biologics dispenser, it's sized to sit on a standard bench without dedicated infrastructure, drawing only compressed air to operate.

MonoBiologics manufactures the MB-50-X in-house as part of a complete LSR metering, mixing and molding platform. Because it uses the same fixed 1:1 ratio as the Production LSR Metering & Mixing System, formulations developed here transfer directly to production scale without re-validation, and pair with the 8-Ton LSR Molding Press to complete the molding cell.

Why Benchtop

Precise 1:1 mixing at bench scale

The entry point into our LSR machine platform, sized for development, not production.

⚖

Bench-to-production consistency

Same fixed 1:1 ratio principle as the MB-600-X production system.

📏

Compact footprint

12 in. x 30 in., ~50 lbs, fits on a standard bench.

⚡

Fast changeover

Cartridge-fed with minimal setup between formulations.

🎯

Precise ratio control

No dosing drift across cycles.

🏥

Industrial & medical grades

Match specification to application from day one.

💰

Low investment

The most economical way onto the platform.

Where the benchtop system is used

Formulation development & screening

Bench-scale trials before committing to production volumes.

Low-volume production runs

Cost-effective dispensing for small batch sizes.

Medical device R&D

Medical-grade dispensing for early-stage device development.

Process scale-up validation

Prove the process before moving to the production system.

Academic & contract labs

Compact footprint for shared lab environments.

Bioprocess component prototyping

Early-stage components for single-use assemblies.

Scaling beyond the bench?

The Production LSR Metering & Mixing System handles up to 600 cc/min at the same fixed 1:1 ratio. Pair either system with the 8-Ton LSR Molding Press for a complete cure cycle.

Downloads & Documentation

Request the Benchtop LSR Datasheet

Tell us your application and formulation, and we will send the benchtop system datasheet direct to your inbox.

Thank you! Your submission has been received!

Oops! Something went wrong while submitting the form.

FAQ

Benchtop LSR System FAQ

What viscosity range can the benchtop system handle?

50,000 to 2,000,000 cps.

What is the mixing ratio?

Fixed 1:1, two-component.

How is the system fed?

A 20 oz Semco cartridge.

What is the output pressure range?

0 – 3,000 psi.

What are the weight and footprint?

~50 lbs, on a 12 in. x 30 in. footprint.

Is it available in medical grade?

Yes, industrial and medical grades are both available.

Can formulations scale to production?

Yes, the production system uses the same fixed 1:1 ratio principle.

Does it require compressed air?

Yes, the system is fully pneumatic.

What's the difference versus the production system?

Output volume and feed method: the benchtop system is cartridge-fed up to 50 cc/stroke, the production system is pail-fed up to 600 cc/min.

Do I need a separate molding press?

Yes, pair the meter/mix system with the 8-Ton LSR Molding Press for molding and curing.
