E-Centric Right Angle

Description
‍

E-Centric Right Angle Diaphragm Valve for Sampling & Bleed Systems

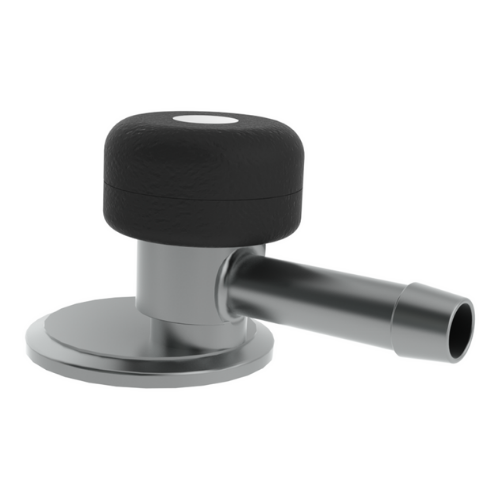

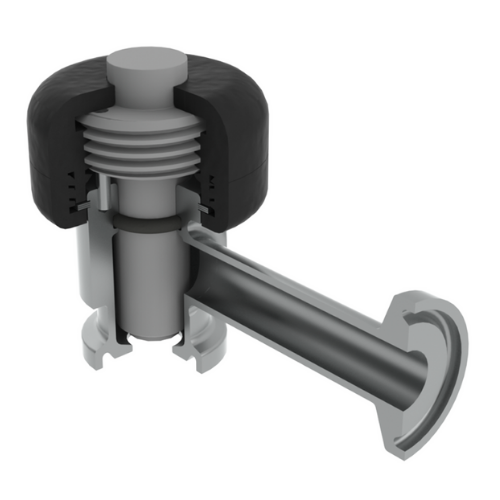

The Aquasyn E-centric Right Angle diaphragm valve is engineered to provide compact, high-integrity sampling and bleed control in biotechnology, pharmaceutical and clean-environment manufacturing systems. Its offset, right-angle orientation allows efficient fluid routing with minimal footprint while maintaining an optimized, crevice-free internal path and low dead-leg design.

Manufactured in 316L stainless steel and built to ASME-BPE standards, the valve features reliable diaphragm actuation, robust construction and integration flexibility for sampling ports, drain manifolds, disposable skid frames, pump discharge loops and modular fluid control systems.

Designed for cleanroom-ready installations and demanding sterilization cycles, the valve supports frequent actuation and offers consistent performance in high-purity fluid handling applications where sampling precision and system integrity are critical.
