Diapraghms

Description

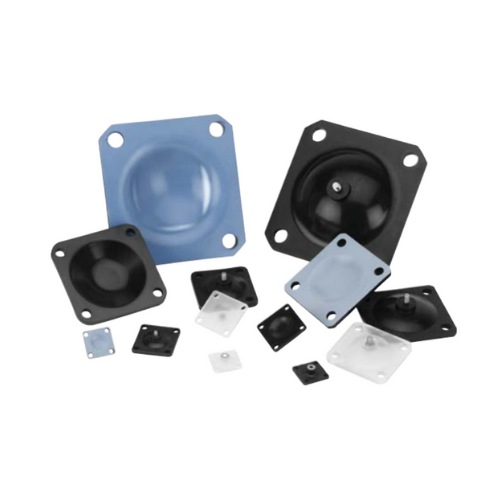

Aquasyn diaphragms are engineered to meet the exacting standards of the biopharmaceutical industry. Molded with precision and crafted from fully compliant materials, they deliver long-lasting performance, chemical resistance, and peace of mind in purity-critical systems.

Every diaphragm is manufactured with tight tolerances, molded in the open position for reduced installation stress, and supplied with full lot traceability and a Certificate of Conformance as standard. These diaphragms are built to perform reliably in demanding applications like chromatography, filtration, and bioreactors, without compromising product integrity.

Aquasyn offers a range of high-performance materials to suit your process requirements, including:
EPDM
Silicone
Viton
Ultraz Fluoroelastomer
Fluoropolymer-faced (TFM 1700)/EPDM

All Aquasyn diaphragms conform to USP Class VI specifications. Our Ultraz Fluoroelastomer diaphragms go a step further, meeting USP Class VI, ASME-BPE, and the extractables criteria of CFR 21 177.2600.

Features

- Precision-molded for consistent performance and long life

- Certified to USP Class VI and FDA 21 CFR 177.2600 standards

- Full material traceability with Certificates of Conformance

- Molded in open position to reduce installation stress

- Wide material options including EPDM, Silicone, Viton, and PTFE-faced EPDM

- Compatible with CIP/SIP and harsh bioprocessing conditions

- Designed for purity-critical systems with low extractables

- Fully compliant with ASME-BPE and biopharma industry standards
