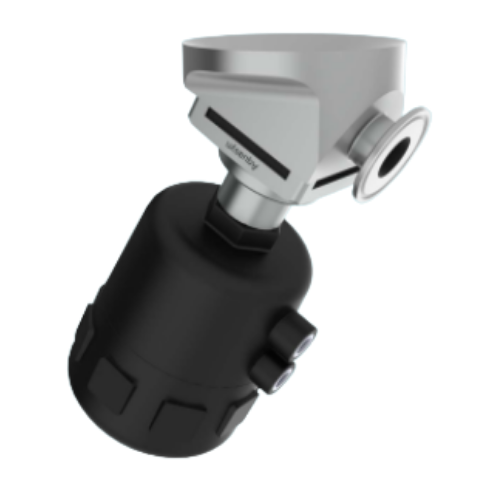

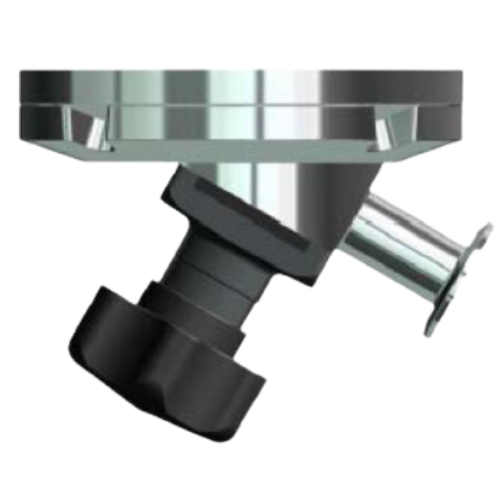

Tank Bottom Valves
.png)
.png)
Description
Aquasyn’s tank bottom valves are engineered to ensure complete vessel drainability, eliminate dead legs, and optimize process integrity at the critical tank outlet point. Designed with a compact conical profile and available in a wide range of sizes and materials, these valves provide a reliable and clean solution for both sampling and full-volume discharge applications.
Our tank valves are available in two main styles, Welded Flange and Tri-Tank, offering flexibility in installation and integration. Whether welded, clamped, or bolted to the tank surface, each valve is built with precision and application-specific adaptability in mind.
Features
- Two design styles: Welded Flange and Tri-Tank (Tri-Clamp)
- Sizes from ¼″ to 4″ (other sizes available on request)

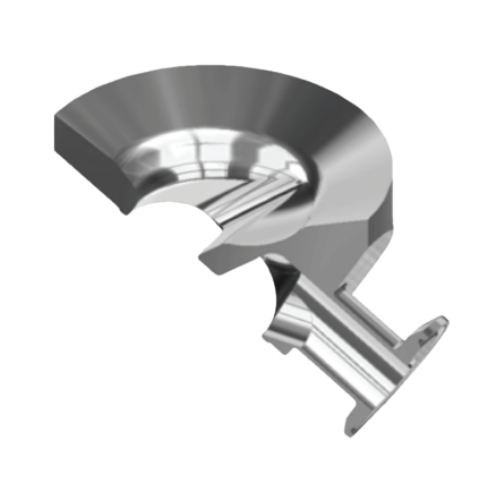

- Full drainability via conical body design, prevents entrapment and stagnation
- Weir face positioned close to flange to eliminate residual fluid zones
- Manual or pneumatic actuation available
- Materials: 316L stainless steel standard; also available in Hastelloy, AL6XN, and others
- Multiple end connections and drain port options to suit specific process requirements
- Tri-Tank option ideal for vessels requiring frequent disassembly, cleaning, or sampling
- Machined from solid bar stock for structural integrity and precision
